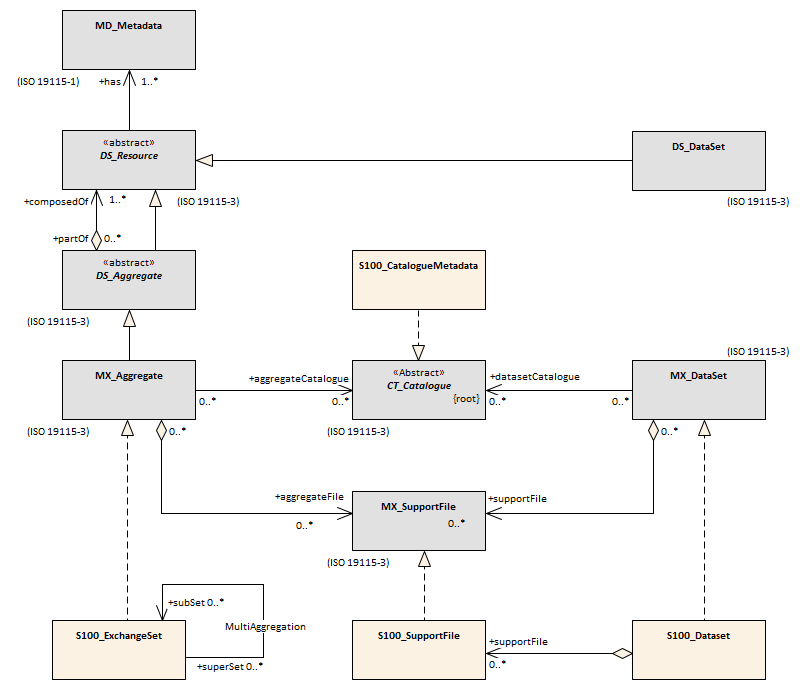

V4.0 Fig 4a-D1 Realization of the Exchange set Classes

V4.0 Fig 4a-D1 Realization of the Exchange set Classes : Class diagram

Created:	5/1/2018 12:00:00 AM
Modified:	11/26/2018 12:00:54 AM
Project:
Author:	IHO
Version:	4.0
Advanced:
ID:	{8BE5FF09-5EB7-4517-8825-6C8A67F846EB}

Figures 4a-D1 to 4a-D3 outline the overall concept of an S-100 exchange set for the interchange of geospatial data and its relevant metadata. Figure 4a-D1 depicts the realization of the ISO 19139 classes which form the foundation of the exchange set.<br/>
